Home » , , » EDE small and fast desktop environment.

EDE small and fast desktop environment.

EDElogo EDE is small desktop environment built to be responsive, light in resource usage and to have familiar look and feel. It runs on Linux, BSD, Solaris, Minix, Zaurus and even on XBox.


Previous 1.x versions were based on a modified version of FLTK called eFLTK, while later versions are based on FLTK.
In EDE 2 (currently in beta) eFLTK has been replaced with FLTK and EDE's own library, edelib.


edelib contains functionality for creating a window, saving program configuration, communicating via D-Bus, loading icon themes, etc. EDE2 will be following the FreeDesktop.org guidelines.


EDE is not as common in Linux distributions as other desktop environments such as KDE, GNOME, and Xfce. It is available as an optional package in MINIX 3.[6]However, EDE is available in the Mandriva Linux medias since its version 2009.0.

Download.

EDE 2.0 Installation.

ede_main

Prerequisites.

Make sure you have listed requirements or EDE will not compile. If required packages has given version, please use that (or greater) release.

Required programs and libraries.

This is the list of must-have programs and libraries or EDE and edelib (EDE Library) compilation will fail. All these programs and libraries already should came with your distribution as package (or as opt-in from package repository) and if they are not installed, please use your distribution specific installation procedure to install it.

  • C++ compiler (g++ >= 2.95 or newer or any recent SunStudio version). Compiling on clang or intel c++ wasn't tested, but should be possible

  • pkg-config
  • FLTK >= 1.1.7

  • DBus >= 1.0

  • autoconf and aclocal (aclocal is part of automake package) are needed only if you downloaded EDE sources directly from the repository

Optional programs and libraries

This is the list of programs and libraries used by EDE and edelib we would like you have, but are not mandatory. If they are not present, certain features could be disabled.

edelib
  • doxygen - used to make API documentation
  • inotify (present in linux kernel since 2.6.13) or Gamin/Fam
EDE
EDE.
  • python >= 2.3 - used to make documentation

  • UPower - comes with newer distributions (you can find more at http://upower.freedesktop.org)

  • librsvg (only used rsvg tool) - used to create edeneu theme from .svg icons; this is only needed if you downloaded EDE directly from the repository

  • xscreensaver - should come with your distribution
  • cURL - used for bug report tool; it should come with your distribution

There is known issue (Bug #156) with python >= 2.6.2 and building EDE documentation. If you get into the problems as described in bug report, please use the solution given in the comment of that report.

EDE programs and libraries.

This is the list of EDE related programs and libraries you should download from our download pages:

  • jam
  • edelib 2.0
  • ede 2.0

Note.

If you are going to install EDE on default location (/usr/local), make sure you uninstall previous EDE version or use different prefix (like: ./configure --prefix=/opt/ede).

If you had previously installed EDE 2.0 (alpha/beta), make sure you uninstall it completely, no matter where it has been installed.

ede_equinox

Compiling EDE

After you extracted each of EDE related programs, compile them in given order below.

Compile jam

Jam is make replacement we are using to compile EDE and edelib. Some distributions provides jam package so make sure it is official jam or ftjam; common version tody is Boost jam too, but EDE can't be compiled with it!

To see if it official jam, execute:

 jam -v


and if you get something like:



 Jam 2.5. OS=LINUX. Copyright 1993-2002 Christopher Seiwald.


or



 FT-Jam 2.5.3. OS=LINUX. (C) 1993-2003 Christopher Seiwald, see www.freetype.org/jam/


then is ok. If you are not sure what jam version you have (but have already some), let edelib's configure script detects it and report if can be used. You can always download jam we are using from our download pages is you are not sure.



If you downloaded jam source, it already comes with Makefile, so running:



 make


will compile it.



Installation is done by copying jam binary at the common binary location, like /usr/local/bin. Jam binary will be compiled in bin.YOUROS location, where YOUROS is operating system you are running, e.g. on Linux, jam will be in bin.linuxx86 and on FreeBSD will be in bin.freebsdx86. If you are using ftjam, binary directory will be bin.unix.



Copying is done with:



 cp bin.YOUROS/jam /usr/local/bin


ede_equinox_3


Compiling edelib.


In case you downloaded edelib from repository, make sure to run:



./autogen.sh


first and it will create correct configure script. If you downloaded official source release, this step is not needed because configure script is already created. The rest is:



 ./configure


and run jam (not make!):



 jam


and as superuser:



 jam install


Compiling ede.


If you installed edelib with different prefix than /usr, export that path to pkg-config so it can find edelib libraries. To do so, run:



export PKG_CONFIG_PATH=<your-prefix>/lib/pkgconfig


Compiling ede is the same as for edelib. Also, if you downloaded ede sources from repository, make sure to run:



./autogen.sh


first, then:



 ./configure


then:



 jam


and as superuser:



 jam install


(!) Note: if you downloaded ede source code from repository (ede2 module) default icon theme is not built, so you must do it manually. This is really simple procedure where you should pass only one parameter to jam tool (you have to have librsvg installed too). So, instead jam and jam install as given above, you should run:



 jam -sBUILD_ICON_THEMES=1


and



 jam -sBUILD_ICON_THEMES=1 install


This will build ede and icon theme, installing both.



ede_equinox1



Starting EDE.



If you are using display or login manager (like gdm, kdm or xdm) and you installed EDE with default prefix (it will use /usr by default), you will see session entry named EDE in display manager's list of available sessions. However, if you install EDE with different prefix, make sure to copy ede.desktop file (you will find it at <prefix>/share/xsessions/ede.desktop path) to /usr/share/xsessions folder, or configure your display manager to see EDE installation path.



If you are not using display manager (you start X session from terminal with startx command), put startede at the end of .xinitrc file (found in your home directory, like /home/your_username/.xinitrc, but make sure you comment previous window managers or desktop starting scripts if they exists.



If you do not have .xinitrc file in your home directory or you are not sure how things should be modified, here is a working sample you can copy and paste:



userresources=$HOME/.Xresources
usermodmap=$HOME/.Xmodmap
sysresources=/usr/X11R6/lib/X11/xinit/.Xresources
sysmodmap=/usr/X11R6/lib/X11/xinit/.Xmodmap

# merge in defaults and keymaps

if [ -f $sysresources ]; then
xrdb -merge $sysresources
fi

if [ -f $sysmodmap ]; then
xmodmap $sysmodmap
fi

if [ -f $userresources ]; then
xrdb -merge $userresources
fi

if [ -f $usermodmap ]; then
xmodmap $usermodmap
fi

# Comment your previously used window managers or desktops
# /usr/bin/cool-window-manager
# /usr/local/bin/cool-desktop

# Start EDE
startede

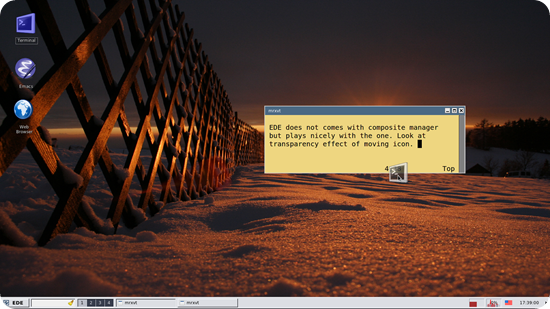

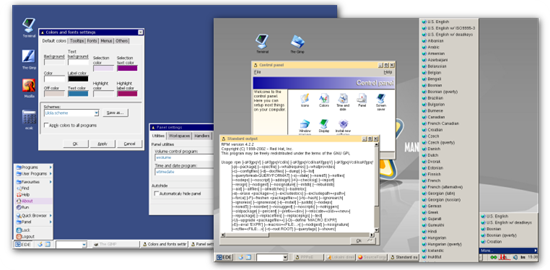

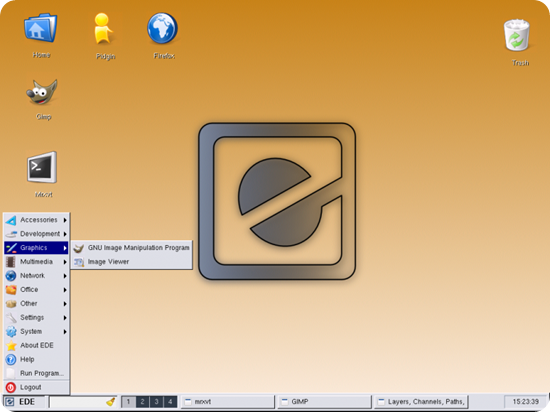

Screenshots.


Ede2



ede_equinox_minix3



ede_quinox_sxb



ede_xfce
