Creating a Fancy Watch in Blender, Chapter VI.

blender logo_thumb[2]_thumb_thumb_thumb_thumb
Blender is a free and open-source 3D computer graphics software product used for creating animated films, visual effects, interactive 3D applications or video games.

Blender's features include 3D modeling, UV unwrapping, texturing, rigging and skinning, fluid and smoke simulation, particle simulation, soft body simulation, animating, match moving, camera tracking, rendering, video editing and compositing. It also features a built-in game engine.

Blender has a relatively small installation size, of about 70 megabytes for builds and 115 megabytes for official releases. Official versions of the software are released for GNU/Linux, Mac OS X, Microsoft Windows, and FreeBSD in both 32 and 64 bits. Though it is often distributed without extensive example scenes found in some other programs.

This time the tutorial is a text tutorial. Orginally it was supposed to be a video tutorial but it was not to be. Also, for the first time, there’ll be two things at the bottom; the best pictures created with the tutorial, and also some inspirational pictures that go with the tutorial.

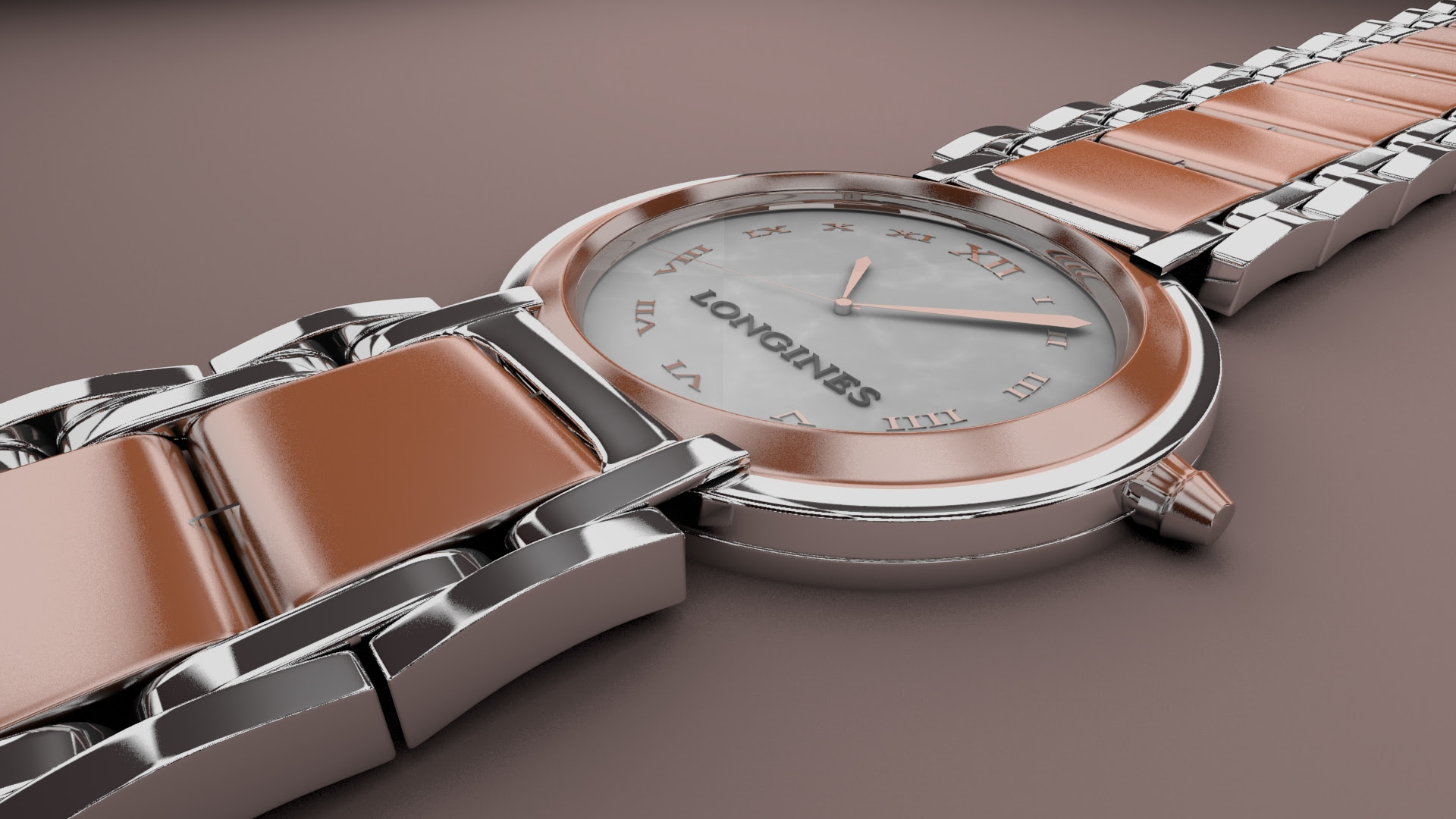

The final result:

The tutorial begins.
Take the selected face and bring it down on the Z-axis slightly.

Add loop cuts to sharpen the edges of the mesh.

Add an array modifier and change the count to 7. Change the relative offset “X” value to 0 but change the Y to -1.03 so that there is a space between each array count.

Now we need to mirror the entire watch band to the other side of the watch. For each part of the watch band, add a mirror modifier, uncheck “X.” and check “Y.” Then make sure you mirror each part of the watch band to the watch itself (The default name should be just “Cylinder”).

Now add the floor. Simply add a plane and make sure that the bottom of the watch just touches the plane. Make the plane pretty large as well.

Also move the camera to a more appropriate view. I found that a focal length of 25 and a camera placement similar to what you see works well.

Now for the letters you see on the watch. There are two options you could do here. Use an image for the watch face, or create the text in Blender. We’ll create it in Blender. Select the watch, press Shift + S and press Cursor to Selected, then add a “Text.”

Obviously the words “Text” are no good. Press Tab to go into edit mode and start typing some actual words for the clock. You can type Roman numerals or plain old letters. I chose (for some variety) to use Roman numerals. After each number, press Spacebar three times to get some space between each number.

In the Font options, change the “Regular” font type to “Times New Roman.” (You can find your fonts at C:/Windows/Fonts – it may be different for different computers) Also set the Extrude amount to 0.004.

Now we need to curve the text on a Curve Circle. Add a Bezier Circle and add a Curve modifier to your text. Once you set the “CurveCircle” to be the target for the curve, the text is warped around the curve. Scale the text down until it looks the way it should. By grabbing and scaling, fit the bezier circle and the text to fit appropriately in the watch face.

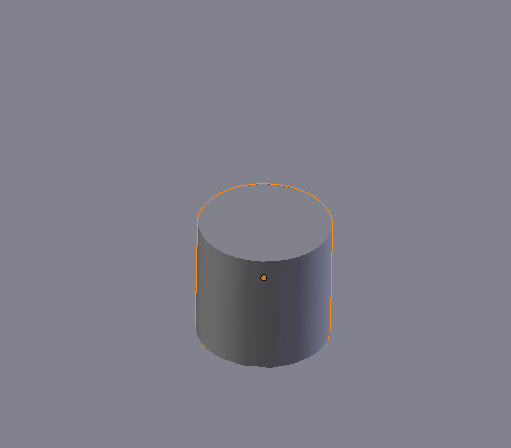

Now we need to create the watch hands. Start off by adding a cylinder for the watch hands to sit on. Scale it down appropriately.

Shade the cylinder smooth and add an “Edge Split” modifier.

Take the selected face and bring it down on the Z-axis slightly.

Add loop cuts to sharpen the edges of the mesh.

Add an array modifier and change the count to 7. Change the relative offset “X” value to 0 but change the Y to -1.03 so that there is a space between each array count.

Now we need to mirror the entire watch band to the other side of the watch. For each part of the watch band, add a mirror modifier, uncheck “X.” and check “Y.” Then make sure you mirror each part of the watch band to the watch itself (The default name should be just “Cylinder”).

Now add the floor. Simply add a plane and make sure that the bottom of the watch just touches the plane. Make the plane pretty large as well.

Also move the camera to a more appropriate view. I found that a focal length of 25 and a camera placement similar to what you see works well.

Now for the letters you see on the watch. There are two options you could do here. Use an image for the watch face, or create the text in Blender. We’ll create it in Blender. Select the watch, press Shift + S and press Cursor to Selected, then add a “Text.”

Obviously the words “Text” are no good. Press Tab to go into edit mode and start typing some actual words for the clock. You can type Roman numerals or plain old letters. I chose (for some variety) to use Roman numerals. After each number, press Spacebar three times to get some space between each number.

In the Font options, change the “Regular” font type to “Times New Roman.” (You can find your fonts at C:/Windows/Fonts – it may be different for different computers) Also set the Extrude amount to 0.004.

Now we need to curve the text on a Curve Circle. Add a Bezier Circle and add a Curve modifier to your text. Once you set the “CurveCircle” to be the target for the curve, the text is warped around the curve. Scale the text down until it looks the way it should. By grabbing and scaling, fit the bezier circle and the text to fit appropriately in the watch face.

Now we need to create the watch hands. Start off by adding a cylinder for the watch hands to sit on. Scale it down appropriately.

Shade the cylinder smooth and add an “Edge Split” modifier.

source: Blender Mesh
